Modutec E-Series 2″ Edgewise Panel Meters

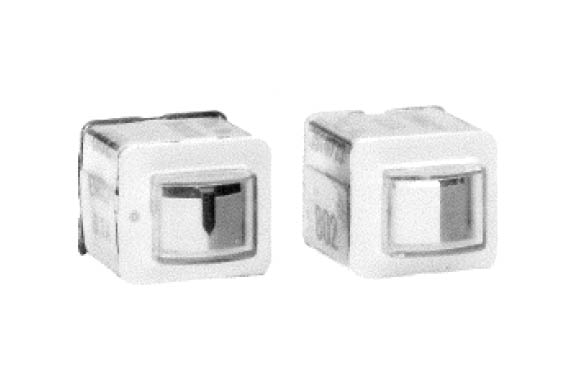

Compact edgewise meter only ½” thick. Self-shielding allows users to stack without magnetic interaction. Lightwell provided for backlighting. Available size 2″.

Categories: Analog Panel Meters, Panel Meters & Avionics Tags: AC, DC, edgewise, modutec, self-shielding

Additional Information

Features	• Compact, ½" thick • Self-shielding – can be stacked "tight" without magnetic interaction. • Polycarbonate case and cover withstand hard knocks and extreme temperatures. • Lightwell provided for backlighting. • Easily mounted with spring clips furnished.

Performance Specifications

Accuracy¹	±2% DC and AC
Repeatability¹	±2% DC and AC
Response Time	2 seconds maximum
Damping	25% maximum overshoot
Resistance Tolerance	±15%
Shielding	Self-shielded; no special calibration needed for steel or non-ferrous panel mounting.
Zero Adjust	On back of case.
Operating Temperature Range	-40° to +70°C (2% accuracy derating)
Mounting²	Spring clip furnished.
Scale Length	1.57"

Notes:

1: Percent of full scale. On zero center meters, specification applies to full scale, not end scale values. Ex., 50-0-50 µA is 100 µA full scale.
2: Unit can be supplied without mounting tabs and with #2-56 threaded inserts and screws for chassis mounting using oval mounting slots.
