D7200 Modbus TCP/IP Ethernet Current Input Module


The D7200 current input module contains seven differential inputs for measuring current signals such as 4-20mA.  The module performs all signal conditioning, a 16-bit analog to digital conversion, linearization and stores the result in a 16-bit unsigned integer format. The unsigned integer values represent a percentage of the full scale current range.

The data values are transmitted to any supervisory host computer that supports the Modbus TCP ethernet protocol.  See the links to a Modbus scaling example and product documentation below.

Download Datasheet

Download Manual

The D7200 4-20mA current input module can be mounted on a DIN-Rail using the MK-1 mounting kit.

Out of stock

Additional Information

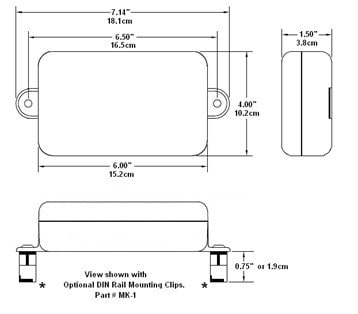

Dimensions 7.14 × 4 × 1.5 in



• 7CH Differential 4-20mA Current Input Module.
• User-selectable analog input range per channel.
• RJ-45 10/100Mbps Ethernet interface.
• Modbus TCP/IP Ethernet Protocol.
• IP Address, Static or DHCP (Default).
• 500Vrms analog input isolation.
• 16-bit analog input measurement resolution.
• Continuous self-calibration
• Programmable analog input digital filters.
• Requires +10V to +30Vdc unregulated supply, 1.4W.
• Removable screw terminal plug connectors.
• CE marked.


The D7200 modules are compatible with all commercial software programs and OPC servers that support the Modbus TCP/IP ethernet protocol. Commercials software programs from Wonderware, DreamReport, Indusoft, DAQFactory and Dasylab all support the Modbus TCP/IP ethernet protocol. OPC Servers from Kepware and MatrikonOPC support the Modbus TCP/IP ethernet protocol.


• Process monitoring and control
• Remote data logging to any host computer
• Product testing
