Additional Information
| Dimensions | 2.25 × 2.25 × 1.99 in |
|---|---|
| Features | •Ranges: ±14.5° to ±90° |
| Applications | • Radar & Antenna Position Control |

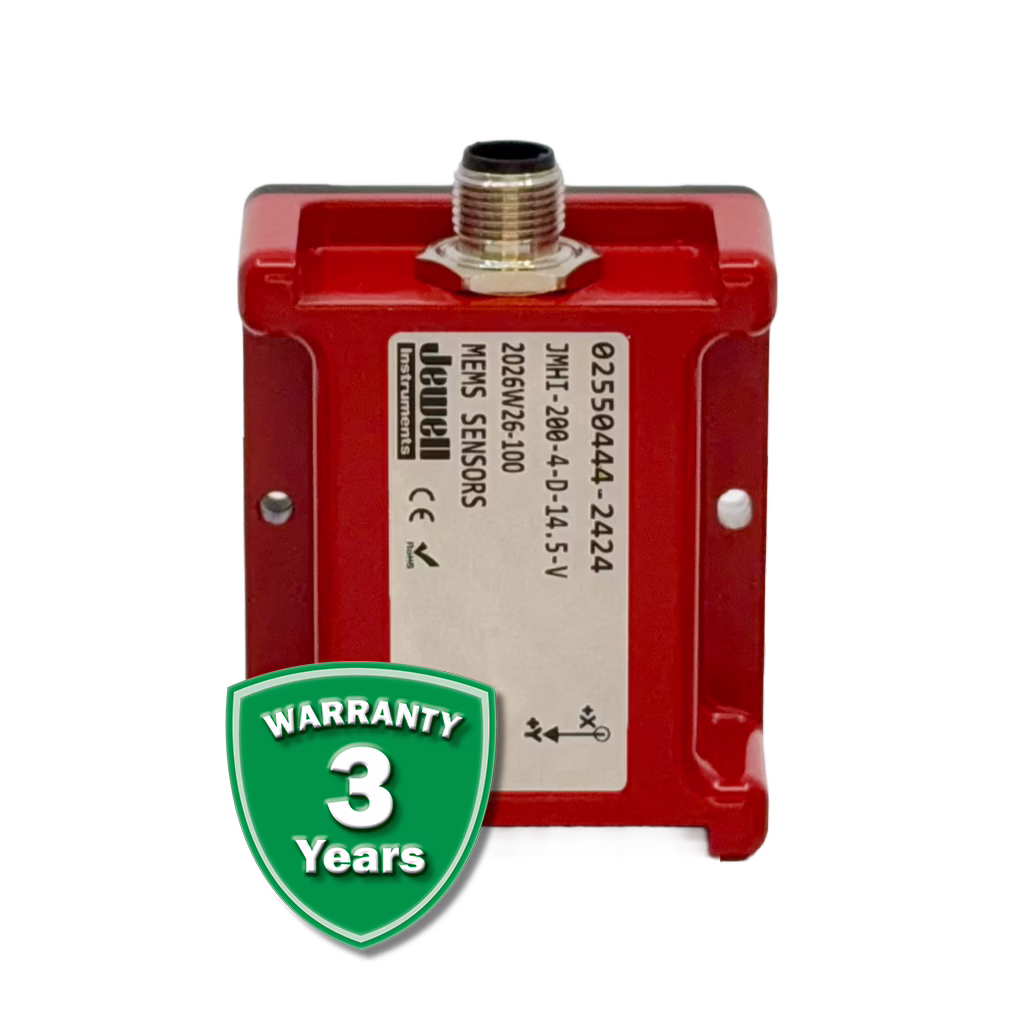

The NEW Ruby Vertical MEMS inclinometer is the latest in our next generation of high-performance inertial sensors. Specifically designed for vertical tilt measurements, it offers all the same improved specifications in a vertically mountable housing – without the need of mounting brackets.
Performance Specifications
Static/Dynamic
| Measurement Range1 (°) | ±14.5 | ±30 | ±60 | ±90 |
| Output Voltage Range (VDC) | ±5 | ±5 | ±5 | ±5 |
| Scale Factor Temp. Coefficient (PPM/°C max) | 150 | 150 | 150 | 150 |
| 0° Output Temp. Sensitivity (V/°C max) | ±0.005 | ±0.0025 | ±0.00144 | ±0.00125 |
| Transverse Axis Misalignment (° max) | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
| Resolution (° max) | 0.001 | 0.001 | 0.001 | 0.001 |
| Non-linearity (% FRO max) | 0.06 | 0.06 | 0.06 | 0.06 |
| Nonrepeatability, Hysteresis (° max) | 0.004 | 0.004 | 0.004 | 0.004 |
| Bandwidth (Hz nom) (-3 dB) | 5 | 5 | 5 | 5 |
Electrical & Environmental
| Number of Axes | 2 |
| Input Voltage Range (VDC) | ±12 to ±18 |
| Input Current (mA max) | 22 |
| Output Impedance (Ω, nom) | <1 |
| Operating Temp. Range (°C) | -40 to +85 |
| Storage Temp. Range (°C) | -40 to +95 |
| Vibration | 20 grms 5Hz to 2KHz |
| Shock | 180 g, 0.011 sec, 1/2 sine |
| Protection Class (per IEC 529) | IP67 |
*Specifications subject to change without notice on account of continued product development.
