JDI-100/200 Digital MEMS Inclinometer Series

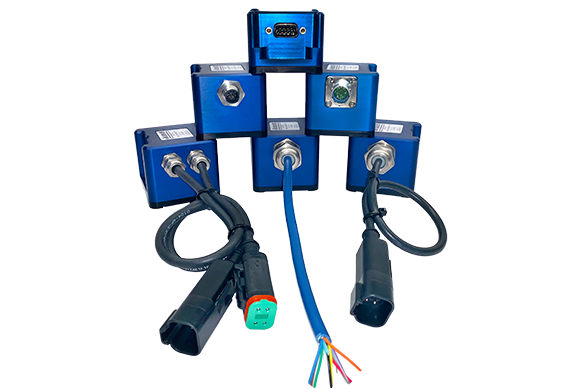

The JDI-100/200 series is a digitally temperature compensated inclinometer available in single and dual-axis configurations. The robust and rugged design is great for industrial use, yet includes the low-cost MEMS technology. These units are available with DB9, Pigtail, Deutsch, Double Deutsch, 6-Pin Circular (C06), or M12 connectors for maximum versatility.RoHs_logo





Description

Additional information

Weight 10.4 oz
Dimensions 2.25 × 2.25 × 1.99 in
Features

• Ranges: ±1°, ±3°, ±14.5°, ±30°, and ±60°
• Digital Interface Options: ASCII (RS-485/RS-232) and Modbus (RS-485)
• Robust & Rugged Enclosure
• Single or Dual Axis Options
• Low-cost MEMS Technology
• RoHS and REACH Compliant
• Single DC Power Input – Galvanically Isolated
• Integrated Temperature Sensor
• IP67 Seal (when mated to IP67 connector)

Applications

• Industrial Automation & Control
• Construction & Agricultural Equipment
• Solar Tracking
• Mobile Cranes
• Platform Leveling/Positioning
• Mobile Radar Equipment
• Bridge Monitoring

Performance Specifications

Static/Dynamic

Measurement Range (°)1±1±3±14.5±30±60
Relative Accuracy (° typical)20.004 0.004 0.004 0.004 0.004
Digital Resolution (° max)0.00010.00010.00010.00010.0001
Repeatability (°)0.010.010.010.010.01
Bias Over Temperature (PPM/°C, typical)8080808080
Transverse Axis Misalignment (° max)0.250.250.250.250.25
Bandwidth (Hz, nominal) (-3dB)(Sample Rate)/4
Non-linearity (% FS), (-20°C to 50°C)0.600.200.050.030.02
Accuracy – Temperature Sensor (°C, max)±2 ±2 ±2 ±2 ±2
Warm Up Time (seconds, typical)0.50.50.50.50.5

Electrical/Protocol

Number of Axes1 or 2
Input Voltage Range (VDC)5 min, 9 to 36 typ, 38 max, reverse wiring protected
Power- RS-485 Termination Enabled (mW, max)800.0
Power- RS-485 Termination Disabled (mW, max)600.0
Galvanic Isolation – Power Inputs (rms)2000
ProtocolHalf Duplex, Proprietary ASCII, & MODBUS-RTU
Baud (bps)32400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 500000 (max)
Communication Settings38 bits, 1 stop bit, even | odd
Data Sample Rate (Hz)33.9, 7.8, 15.6, 31.2, 62.5, 125
Node ID30+last 2 digits of serial number
FilteringUser selectable
Bus Termination – Internal (120Ω)3On/Off

Environment/Mechanical

Operating Temperature Range-40° to +85 °C
Storage Temperature Range-55° to +105 °C
Shock18 g, 0.011 sec, ½ sine
Vibration20 grms 5Hz to 2KHz
SealIP67 (when mated to IP67 connector)

Notes:

1: Custom ranges available by request
2: Observed using noise reduction methods
3: User selectable, default is bold
4: NIST Certification Range up to ±45°, Calibrated Temperature Range of -30 °C to +60 °C
5: Specifications subject to change without notice on account of continued product development
