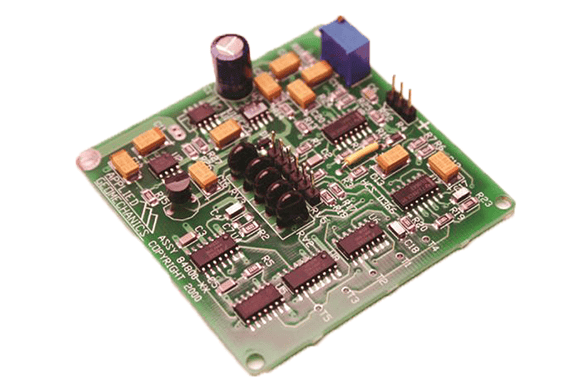

Model 84800 Single-Channel Signal Conditioning Card

The Model 84800 is a single-channel, compact, high-performance signal conditioner for use with all Jewell Instruments miniature tilt sensors. Each 84800 conditioning card will provide excitation and signal conditioning for any electrolytic tilt sensor and for one LM-35 temperature sensor. Output is a stable ±5 DC voltage (±10 VDC differential). Units also include a built-in 1.75 sec low-pass Butterworth filter for superior noise rejection (specify custom filter times on order), and the square form factor allows for easy packaging in OEM and end-user assemblies. The Model 84800 will drive signals over cable lengths of 300m. Distances between card and tilt sensor can be up to 100m. Use the 84800 signal conditioning card for peak performance with any of our 755 series, 756 Series, or Ceramic Miniature Tilt Sensors.





Additional information

Weight 0.75 oz
Dimensions 2.47 × 2.47 × 0.63 in
Features

• Single-ended voltage output
• Circuit is reverse polarity protected
• ±4 VDC (±2.5 VDC calibrated) or 0-5VDC output

Performance Specifications

Input Channels1 Tilt Channel (X or Y), 1 LM35 Temperature Sensor
Output Signal±5 VDC single-ended (±10 VDC differential)
Gain SettingsFixed
Standard CalibrationSensor TypeScale FactorRange
755 Series0.1°/V±0.5
756 Series1.0°/V±5.0
840530.6°/V±3.0
84064-0210°/V±50.0
Output Filters2-pole Butterworth low-pass filter, roll-off = 12 dB/octave
Temperature Output0.1°C/mV (single-ended)
Power8 to 18 VDC@ 8 mA typical, 250 mV ripple max.; reverse polarity protected
Environmental-25 to +70°C operation and storage, 0-90% humidity non-condensing
MaterialsFiberglass PCB, surface mount components

*Specifications subject to change without notice on account of continued product research and development.
