Jewell Instruments is excited to introduce two new products to our line of Inertial & Tilt Sensors! These new products round out our offerings and provide you with the latest technologies to complement your application.

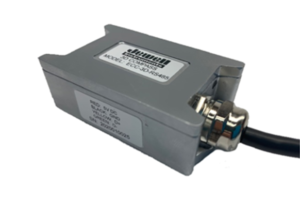

The ECC-2D eCompass is an economical electronic compass for applications that do not require the precision accuracy of positioning specifications such as snow-making and satellite antenna tracking. This eCompass complements our high-end eCompass offerings and rounds out Jewell’s line of electric compasses.
- Heading accuracy: ±1°
- Hard & soft iron magnetic compensation
- Wide operating temp range: -40° to +85°C
- RS-232, RS-485, and TTL outputs
- Small footprint
- 5Vdc power supply
- IP67 seal
Jewell’s new MEMS accelerometers are high-performing at a reasonable price. These new accelerometers will be replacing the AMA/DMA series product lines. Both the analog (AKA) and digital (DKA) are tri-axis accelerometers that range from ±2g thru ±40g at 1000Hz bandwidth. The DKA Series offers RS-232, RS-485, MODBUS, and TLL interfaces.
- Triaxial Configuration
- 100g shock protection
- Ruggedized for harsh environment operation
- IP67 rating
- High Sensitivity with 1mg resolution
- 2-meter cable whip (Included)
- M12 connector
